Astrolabe Catalogue



Image of the tympan or plate - click for larger version
Tympan 1b

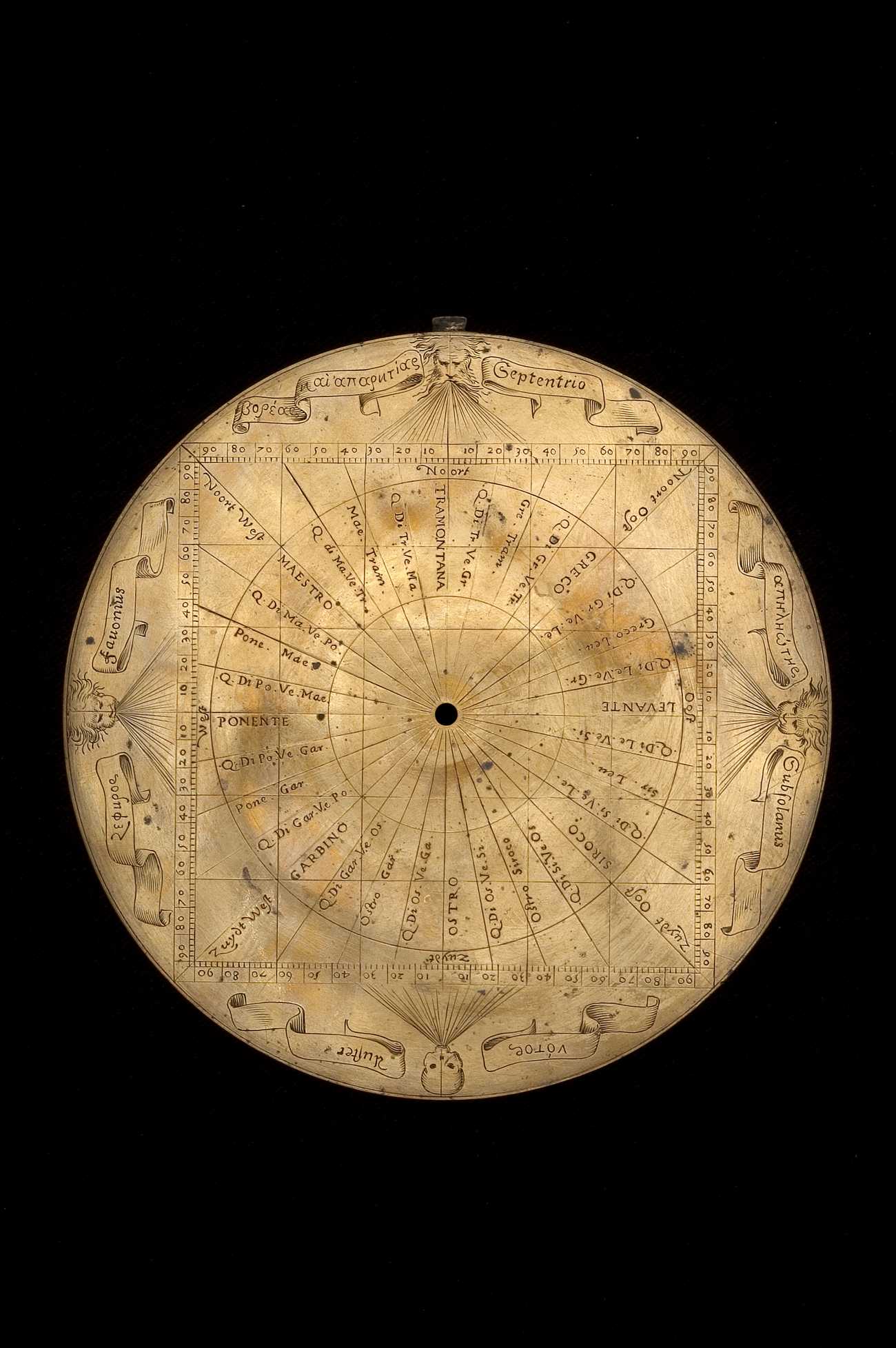

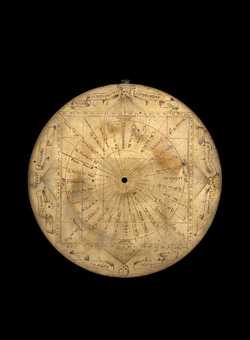

This plate contains a quadratum navicum. Along the edge are personifications of the four winds.

Scales


Type Range & Units Numbered Geometry Location
Quadratum nauticum 0 - 90 Degrees Every 10 degrees Box n/a
Windrose N/A   Circular, concentric n/a
