Almucantars
| Divisions | Labelled | Style |
|---|---|---|
| Divided every 5° from 0° to 90° | Plain line. |

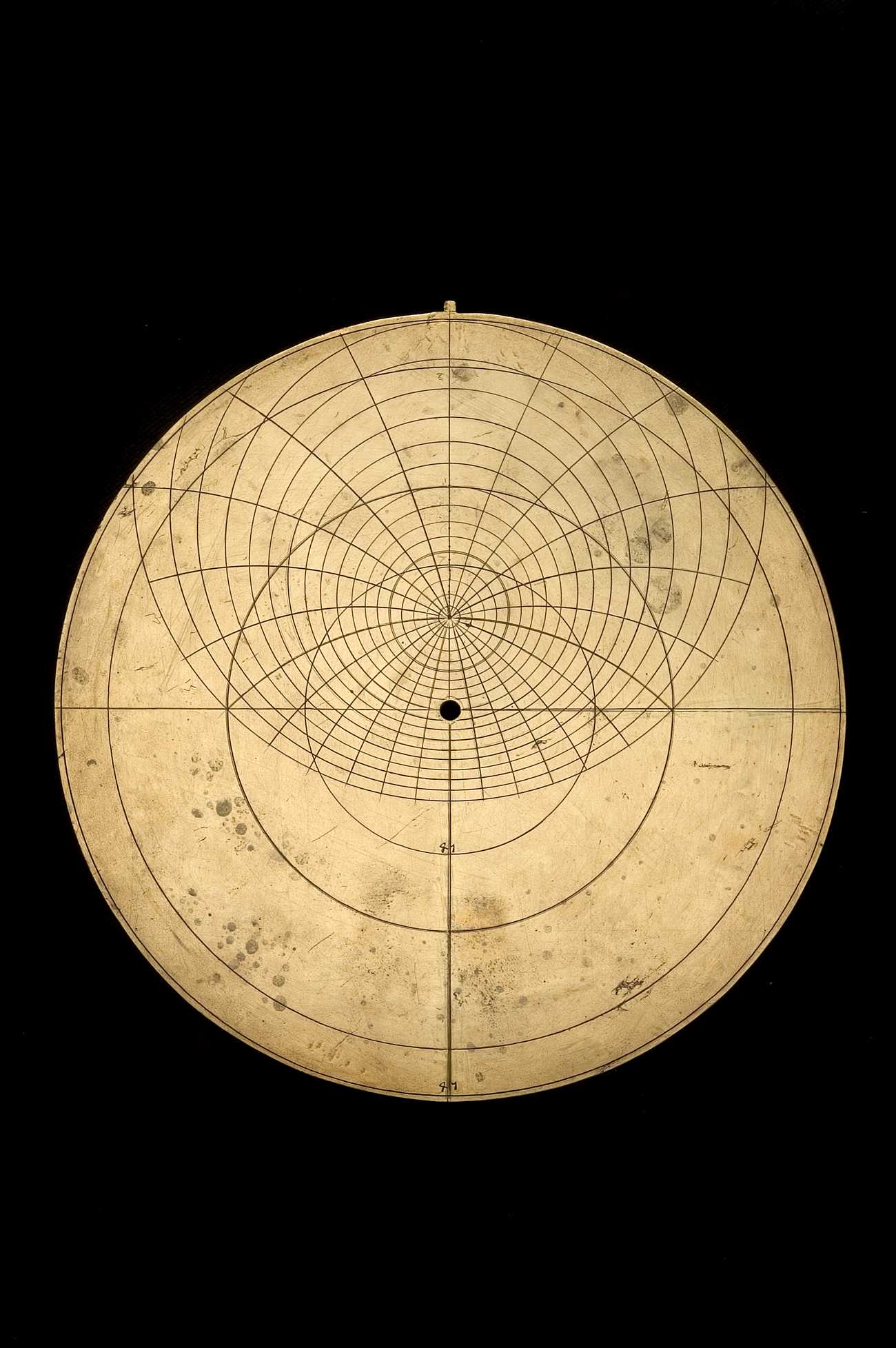

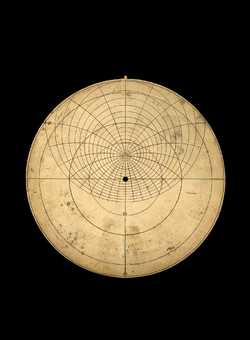

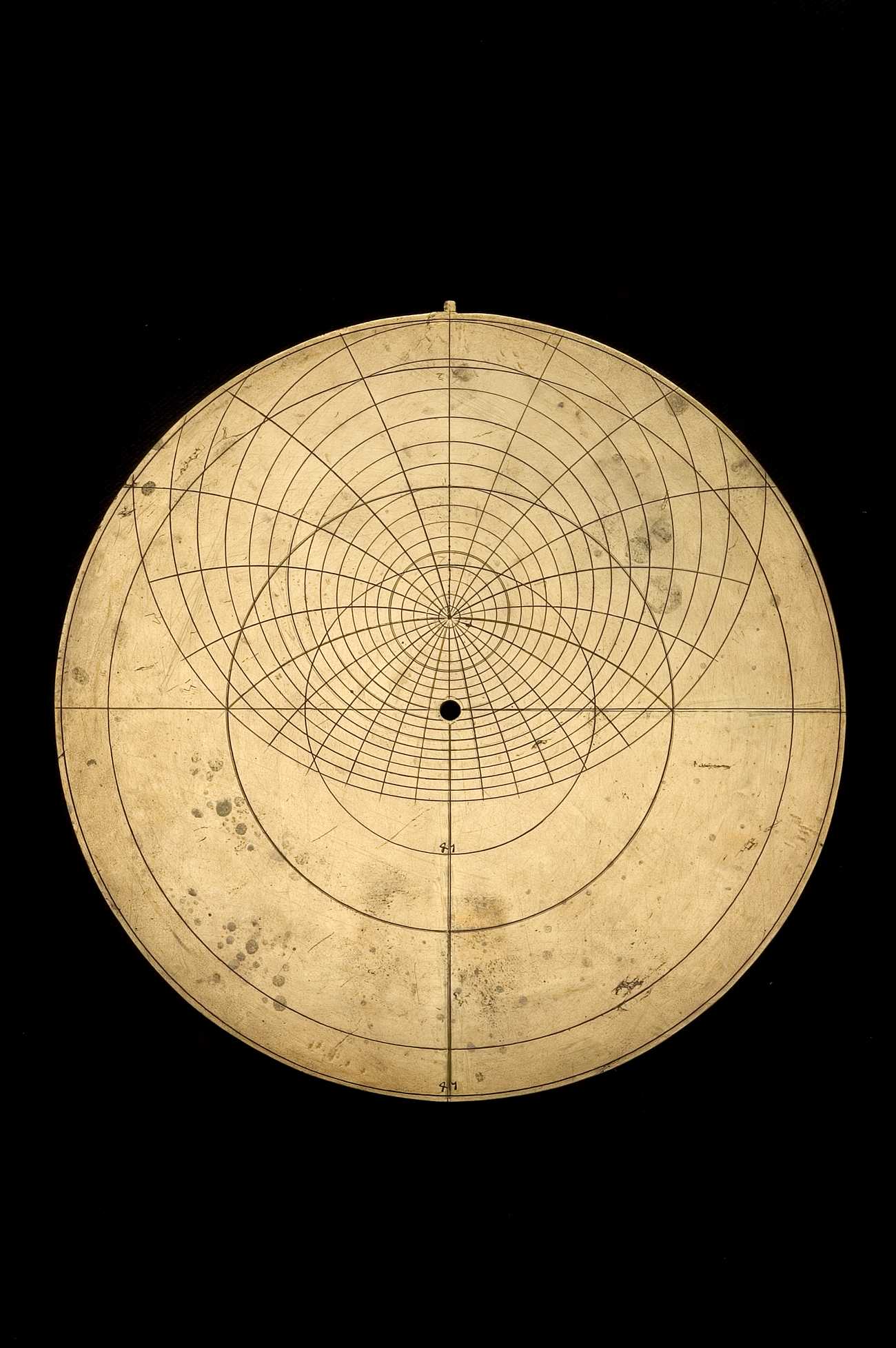

| Tympan | 1b |
| Latitude | 45°0' |
Azimuths
| Divisions | Labelled | Style |
|---|---|---|
| Divided every 15° | Plain line. |
Circles
| Type | Labelled | Style | Notes |
|---|---|---|---|
| Equator | Plain line. | ||
| Tropic of Cancer | Plain line. | ||
| Tropic of Capricorn | Plain line. |
Lines
| Type | Labelled | Description |
|---|---|---|
| Meridian line | ||
| Horizon rectus |
Inscriptions
| Transcription | Translation | Type |
|---|---|---|
| 45 | Latitude |
