Almucantars
| Divisions | Labelled | Style |
|---|---|---|
| Divided every 5° from 0° to 90° | Labelled every 5° with (Abdjad, maghrib) numerals | Plain line. |

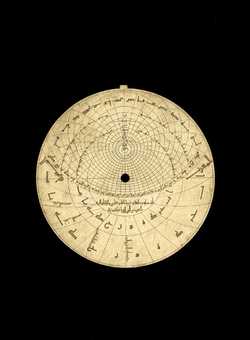

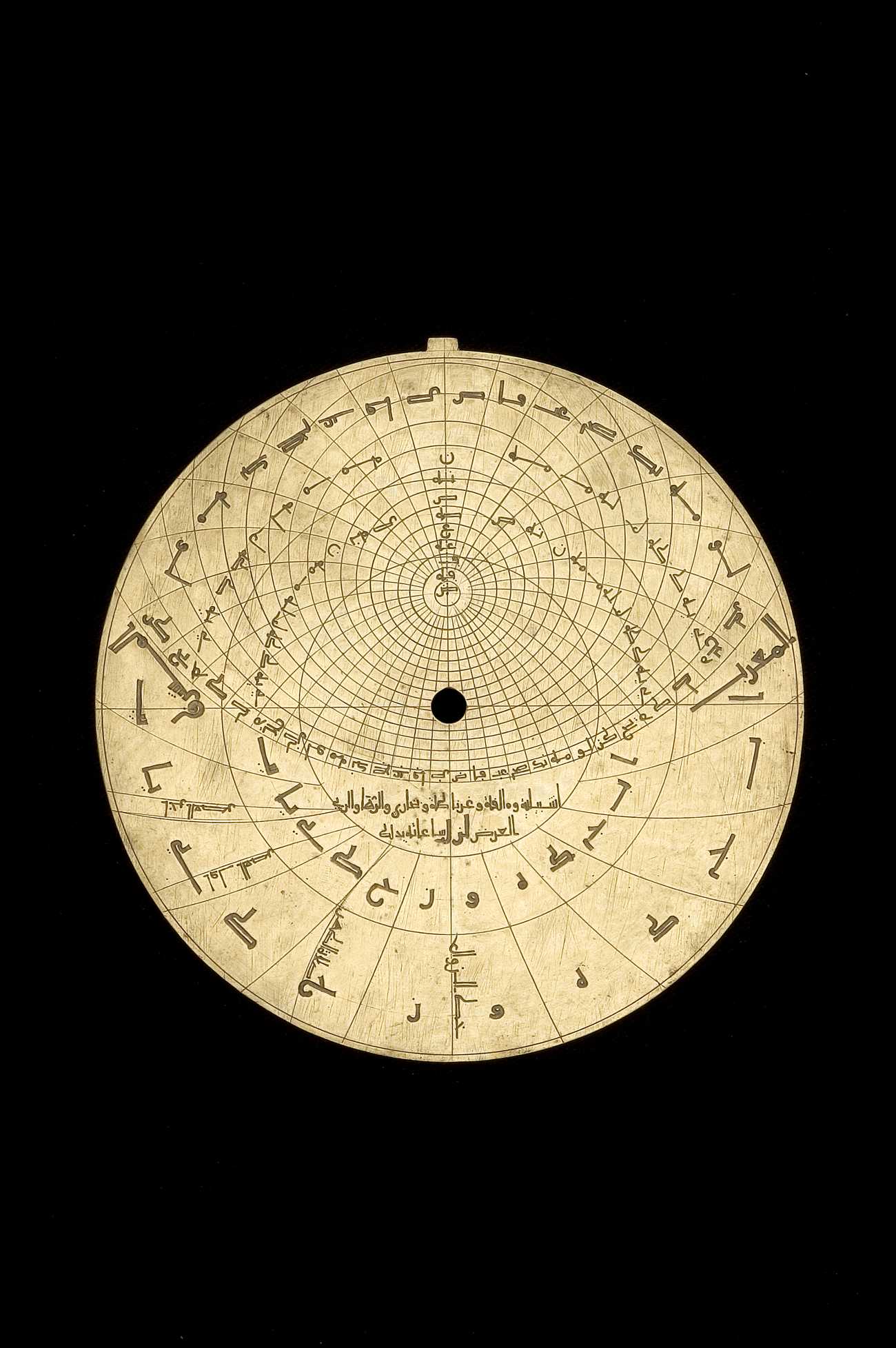

| Tympan | 4b |
| Latitude | 37°0' |
Azimuths
| Divisions | Labelled | Style |
|---|---|---|
| Divided every 9° | Labelled every 9° with (Abdjad, maghrib) numerals | Plain line. |
Circles
| Type | Labelled | Style | Notes |
|---|---|---|---|
| Equator | Plain line. | ||
| Tropic of Cancer | Plain line. | ||
| Tropic of Capricorn | Plain line. |
Lines
| Type | Labelled | Description |
|---|---|---|
| Meridian line | ||
| Horizon rectus | ||
| Unequal hours | Numbered (Numbers in Numbers, engraved script) | (Abdjad, maghrib), Plain line style. |
| Prayer lines | Prayer names (Arabic in Kufic script) |
Inscriptions
| Transcription | Translation | Type |
|---|---|---|
| اشبيلية و مالقة و غرناطة و بخاري و الرها و الري العرض لز ل ساعاته يدلط | Seville and Malaga and Granada and Bukhara and Edessa and ar-Rayy; latitude 37°30'; hours 14h39m | Latitude |
| المشرق | East | Direction |
| المغرب | West | Direction |
| خط الفجر | Line of the evening | Prayer name |
| اخر وقت العصر | End time of the afternoon prayer | Prayer name |
| اول وقت العصر | Beginning time of the afternoon prayer | Prayer name |
| صلاة الظهر | Early afternoon prayer | Prayer name |
| خط الزوال | Line of the midday | Prayer name |
| خط الشفق | Line of the morning | Prayer name |
