Almucantars
| Divisions | Labelled | Style |
|---|---|---|
| Divided every 2° from 0° to 90° | Labelled every 2° with (Abdjad) numerals | Plain line. |

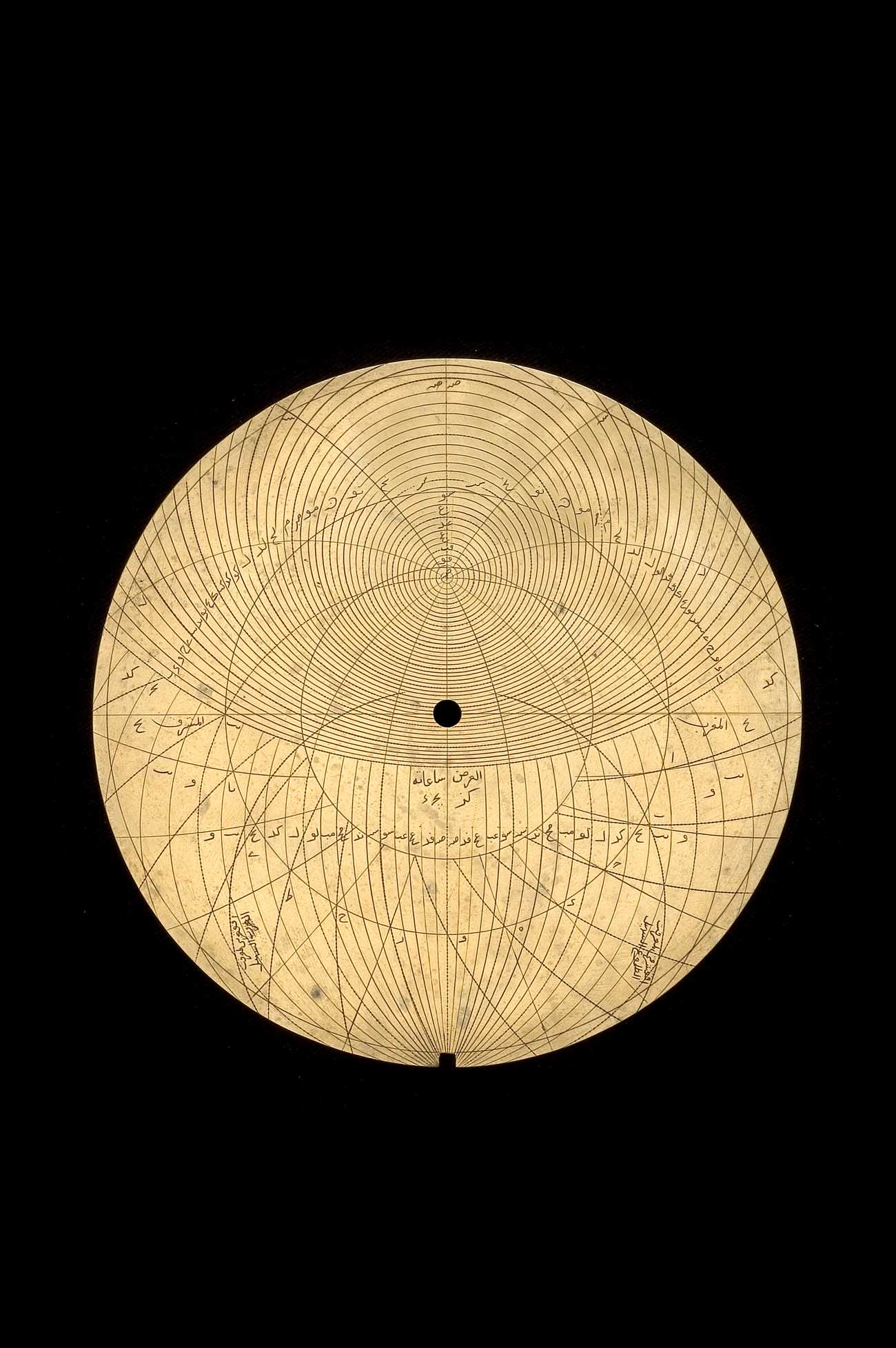

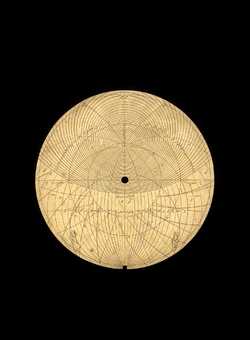

| Tympan | 3a |
| Latitude | 27°0' |
Azimuths
| Divisions | Labelled | Style |
|---|---|---|
| Divided every 6° | Labelled every 6° with (Abdjad) numerals | Plain line. |
Circles
| Type | Labelled | Style | Notes |
|---|---|---|---|
| Equator | Plain line. | ||
| Tropic of Cancer | Plain line. | ||
| Tropic of Capricorn | Plain line. | ||
| Equinoctial colure | Dotted line. |
Lines
| Type | Labelled | Description |
|---|---|---|
| Meridian line | ||
| Horizon rectus | ||
| Unequal hours | Numbered (Numbers in Numbers, engraved script) | (Abdjad), Plain line style. |
| Equal hours from sunset | Numbered (Numbers in Numbers, engraved script) | (Abdjad), Dotted line style. |
Inscriptions
| Transcription | Translation | Type |
|---|---|---|
| العرض كز | The latitude 27° | Latitude |
| ساعاته يح د | Hours 13h04m | Hours of daylight |
| المشرق | East | Direction |
| المغرب | West | Direction |
| لمعرفت الطلوع السهيل | For knowing the rising of the Canopus | Miscellaneous |
| لمعرفت الغروب السهيل | For knowing the setting of the Canopus | Miscellaneous |
