Almucantars
| Divisions | Labelled | Style |
|---|---|---|
| Divided every 2° from 0° to 10° | Labelled every 2° with (Modern) numerals | Plain line. |
| Divided every 2° from 10° to 90° | Labelled every 10° with (Modern) numerals | Plain line. |

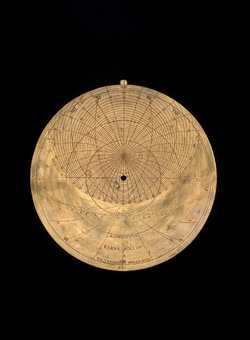

| Tympan | 1a |
| Latitude | 49°0' |
Azimuths
| Divisions | Labelled | Style |
|---|---|---|
| Divided every 5° | Labelled every 10° with (Modern) numerals | Plain line. |
Circles
| Type | Labelled | Style | Notes |
|---|---|---|---|
| Equator | AEQVINOCTIAL: (Latin in Roman Capital script) | None line. | |
| Tropic of Cancer | TRO: ♋ (Latin in Roman Capital script) | Plain line. | |
| Tropic of Capricorn | TROPICVS HIBERNVS (Latin in Roman Capital script) | Plain line. |
Lines
| Type | Labelled | Description |
|---|---|---|
| Unequal hours | 1 to 12 (None in Numbers, stamped script) | (Modern), Plain line style. |
| Horoscopic (great) houses | I to XII (None in Numbers, stamped script) | (IIII), Plain line style. |
| Crepuscule | CREPVSCULINA LINEA (Latin in Roman Capital script) | |
| Meridian line | ||
| Horizon rectus | HORIZON RECTVS (Latin in Roman Capital script) | |
| Horizon obliquus | HORIZON OBLIQVVS (Latin in Roman Capital script) |
Inscriptions
| Transcription | Translation | Type |
|---|---|---|
| ELAVA: POLI 49 | Latitude | |
| ME: | Latitude | |
| OC: | Latitude | |
| OR: | Latitude | |
| SEP: | Latitude |
