Astrolabe tympan report

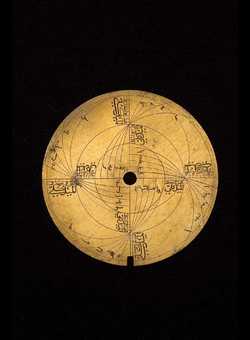

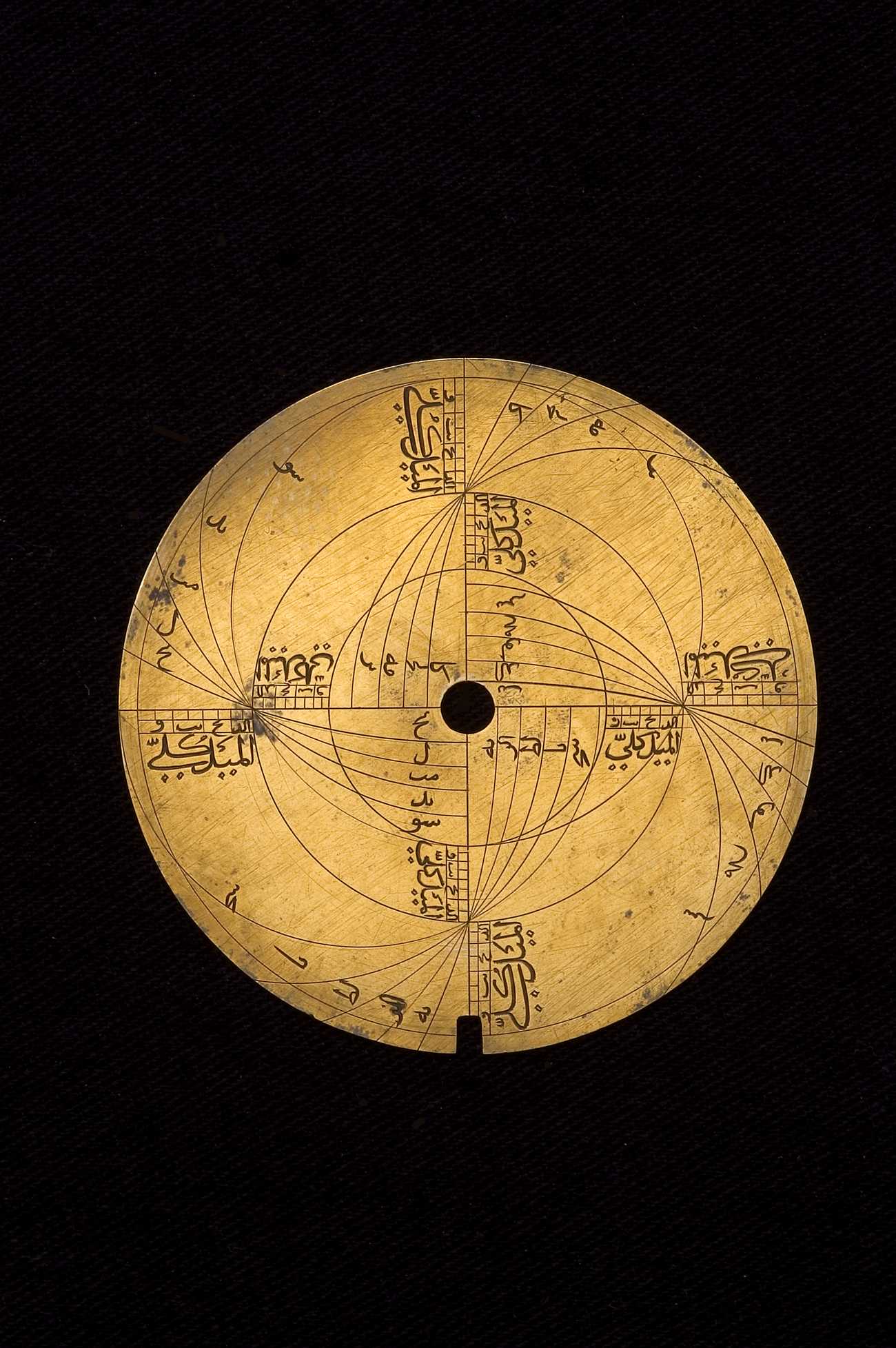

Image of the tympan or plate - click for larger version

Tympan

5b

.

Scales

Type	Range & Units	Numbered	Geometry	Location
Table of Horizons	12 - 66 Degrees	Each one degrees	n/a	n/a
Declination	0 - 24 Degrees	6 degrees	Linear	n/a
