Throne
The throne is of the three-lobed type
. The throne is attached with a integrated base. The lower
two lobes are decorated with 5-pedalled flowers. The upper
lobe is similarly decorated with a floral engraving.
Ring
The ring is of the simple, round cross-section
type (i.e. simple plain ring made from a round rod or piece
of metal).
Shackle
Shackle of the eye-bolt type (i.e. any
shackle that attactes to the ring via an eye-bolt type
feature). The rotating eye-bolt is attached to an ∩-shaped
shackle
that attaches to the
throne via
a
pin.

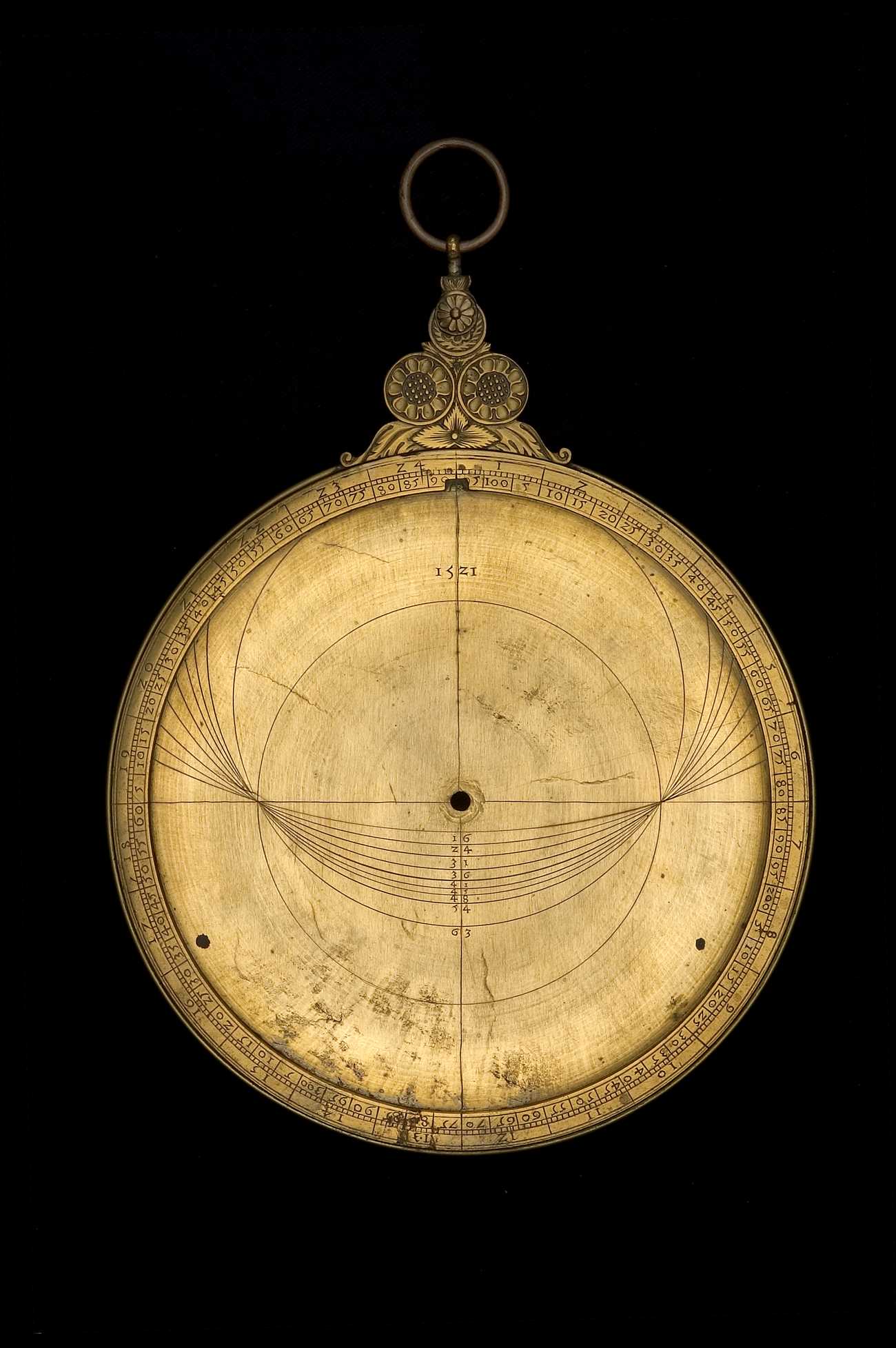

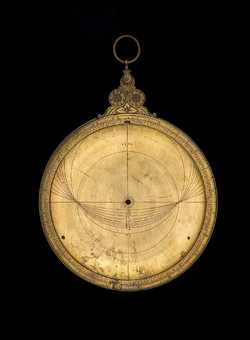

Mater
The mater and limb are of one-piece
construction. The edge of the limb has been scored and a
thick brass wire has been placed in the resulting grove.
Scales on the limb:
| Range & Units |
Numbered |
Geometry |
Location |
| Equal
hours |
1 - 24 Times of day |
Every 1 hours |
Circular, concentric |
outer |
| Degree |
0 - 360 Degrees |
Every 5 degrees |
Circular, concentric |
outer2 |
Womb
The womb contains 1 scales of the following types:
| Range & Units |
Numbered |
Geometry |
Location |
| Table of
Horizons |
16 - 63 Degrees |
Each one degrees |
None |
None |
The womb is inscribed:
| Translation |
Notes |
Type |
| 1521 |
1521 |
|
Date |
Circles
| Type |
Labelled |
Style |
Notes |
| Equator |
|
Plain line. |
|
Lines
| Type |
Labelled |
Description |
| Meridian line |
|
|
| Horizon rectus |
|
|
