astrolabe, inventory number 52713 from North Africa, 1728/9 (A.H. 1141)
thumbnail for astrolabe (front), inventory number 52713 from North Africa, 1728/9 (A.H. 1141)
thumbnail for astrolabe (back), inventory number 52713 from North Africa, 1728/9 (A.H. 1141)
thumbnail for astrolabe (rete front), inventory number 52713 from North Africa, 1728/9 (A.H. 1141)
Date1728/9 (A.H. 1141)
MakerMuḥammad ibn Aḥmad al-Baṭṭuṭī
PlaceNorth Africa
MaterialBrass
Inventory no.52713
AcquisitionPresented by Lewis Evans in 1924

View all images for this astrolabe
View detailed provenance for this astrolabe

Throne, Ring and Shackle

The throne is of the simple type made of brass attached with integrated base made of brass and has a simple, round cross-section ring made of brass and eye-bolt type shackle made of brass . More information

Mater

The mater and limb are of two pieces, riveted construction. Scales on the limb: degree scale. More information

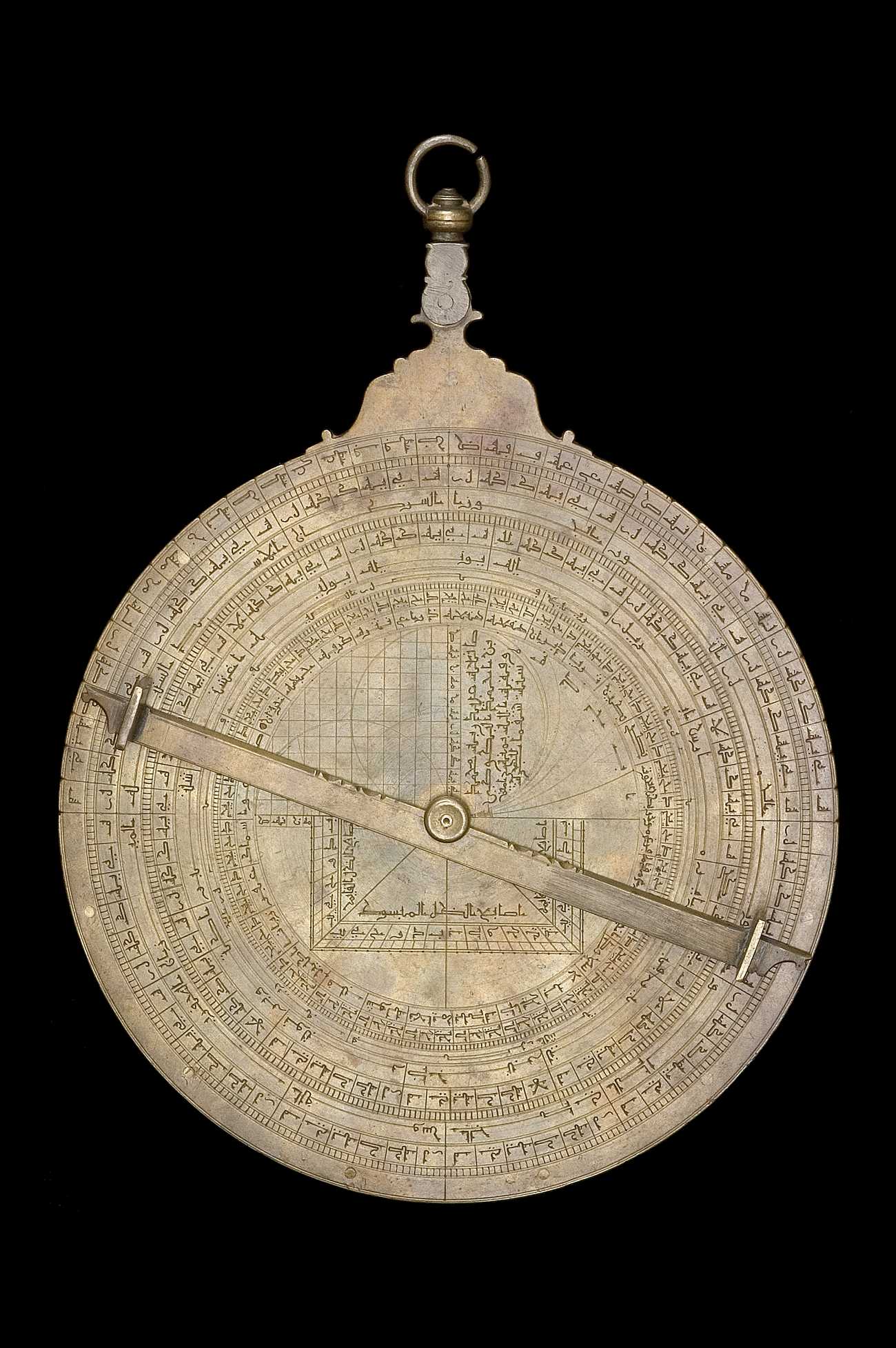

Back

The back contains 8 scales of the following types: Altitude; Zodiacal signs; Calendar; Lunar Mansions; Unequal hours; Sine/Cosine; Shadow square. More information

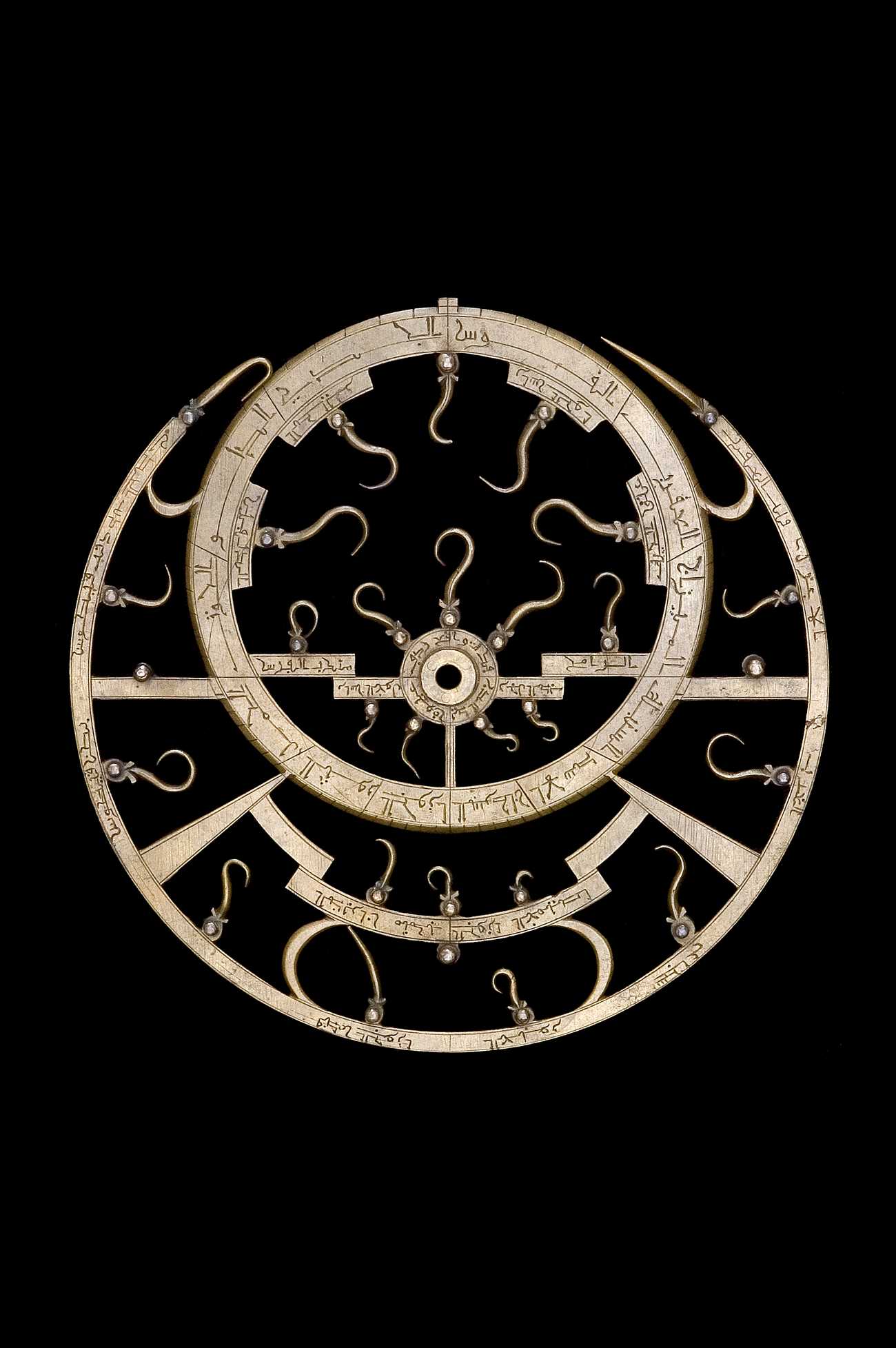

Rete, Pin & Wedge

The rete contains 25 stars. The zodiac on the rete is labelled: الحمل , الثور , الجوزا , السرطان , الاسد , السنبله , الميزان , العقرب , القوس , الجدي , الدلو , الحوت.

The rete contains 1 scale of the following type: Ecliptic.
The rete is attached using a pin & wedge. More information

Plates

There are 3 plates with latitudes ranging from 21°0' to 36°0' . More information

Rules & Alidades

Type Details
AlidadeDouble-ended.
More information
