Astrolabe report (inventory number 41409)

astrolabe, inventory number 41409 from France, ca. 1560

Date	ca. 1560
Place	France
Material	Brass
Inventory no.	41409
Acquisition	Presented by Lewis Evans in 1924

View all images for this astrolabe
View detailed provenance for this astrolabe

Throne, Ring and Shackle

The throne is of the engraved type made of brass with s-shaped scroll work support(s) made of brass attached with integrated base made of brass and has a simple, round cross-section ring made of brass and eye-bolt type shackle made of brass . More information

Mater

The mater and limb are of two pieces, riveted construction. Scales on the limb: equal hours scale. More information

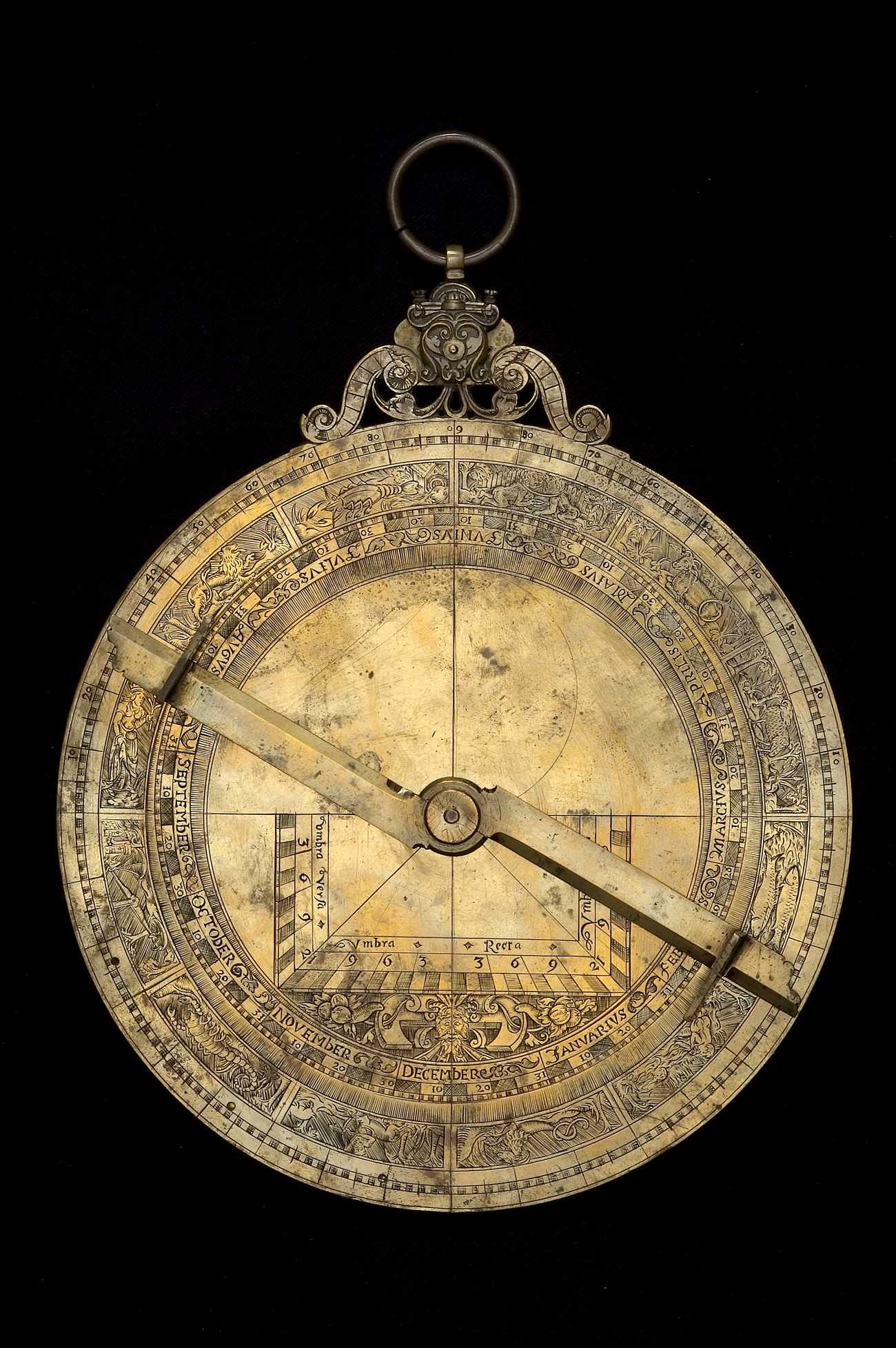

Back

The back contains 5 scales of the following types: Degree; Zodiacal signs; Calendar; Shadow square. More information

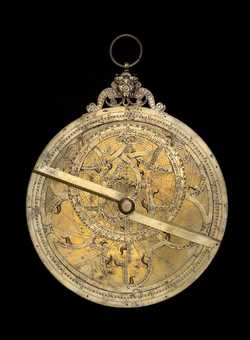

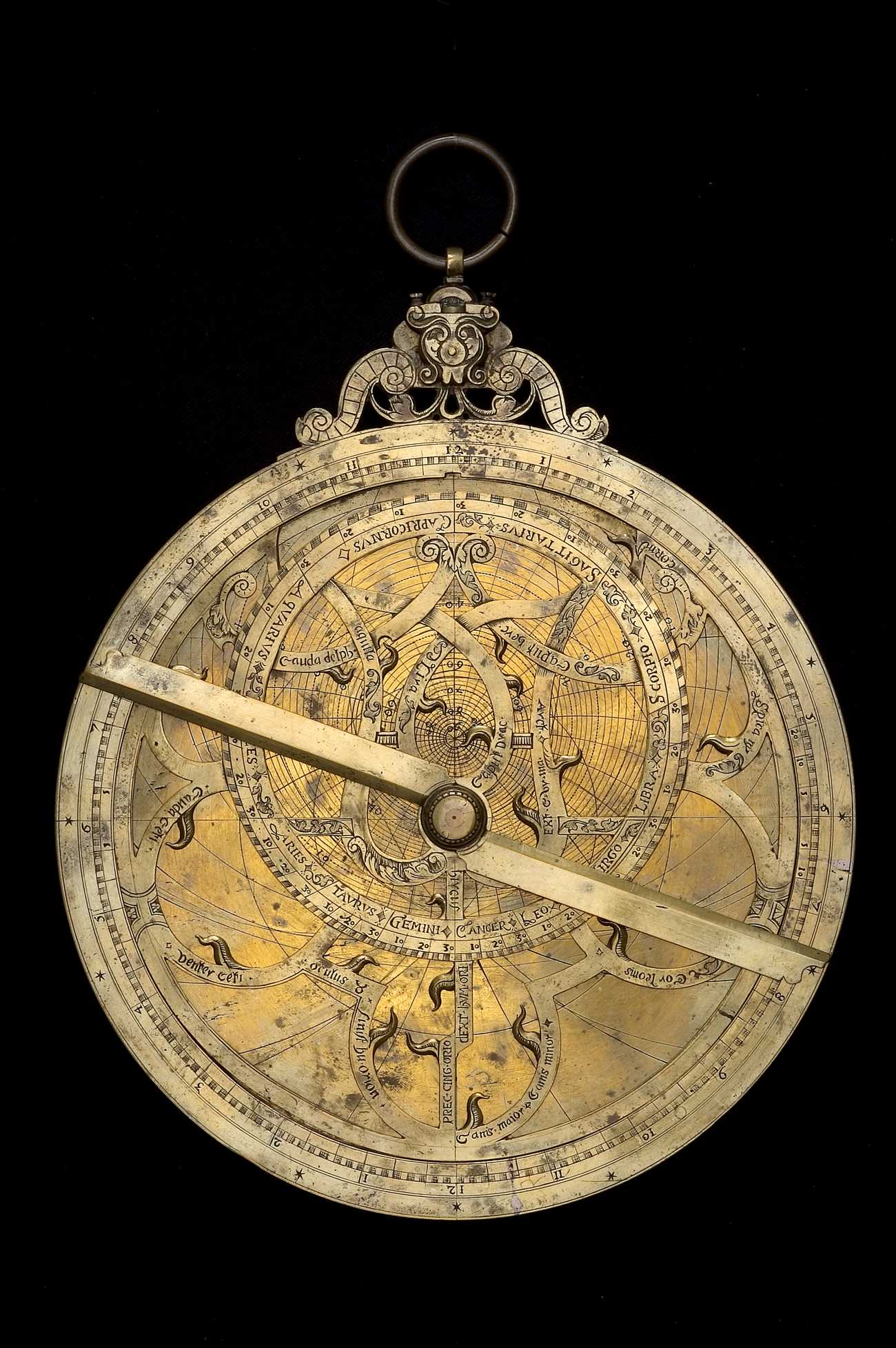

Rete, Nut & Bolt

The rete contains 21 stars. The zodiac on the rete is labelled: ARIES , TAVRVS , GEMINI , CANCER , LEO , VIRGO , LIBRA , SCROPIO , SAGITTARIVS , CAPRICORNVS , AqVARVIS , PISCES .

The rete contains 1 scale of the following type: Ecliptic.
The rete is attached using a nut & bolt. The bolt is attached to the alidade on the back of the instrument. More information

Plates

There is one plate with latitudes ranging from 49°0' to 50°0' . More information

Rules & Alidades

Type	Details
Rule	Single-ended, counter-changed.
Alidade	Single-ended, counter-changed.

More information
