astrolabe, inventory number 53307 from Turkey, 17th century (?)

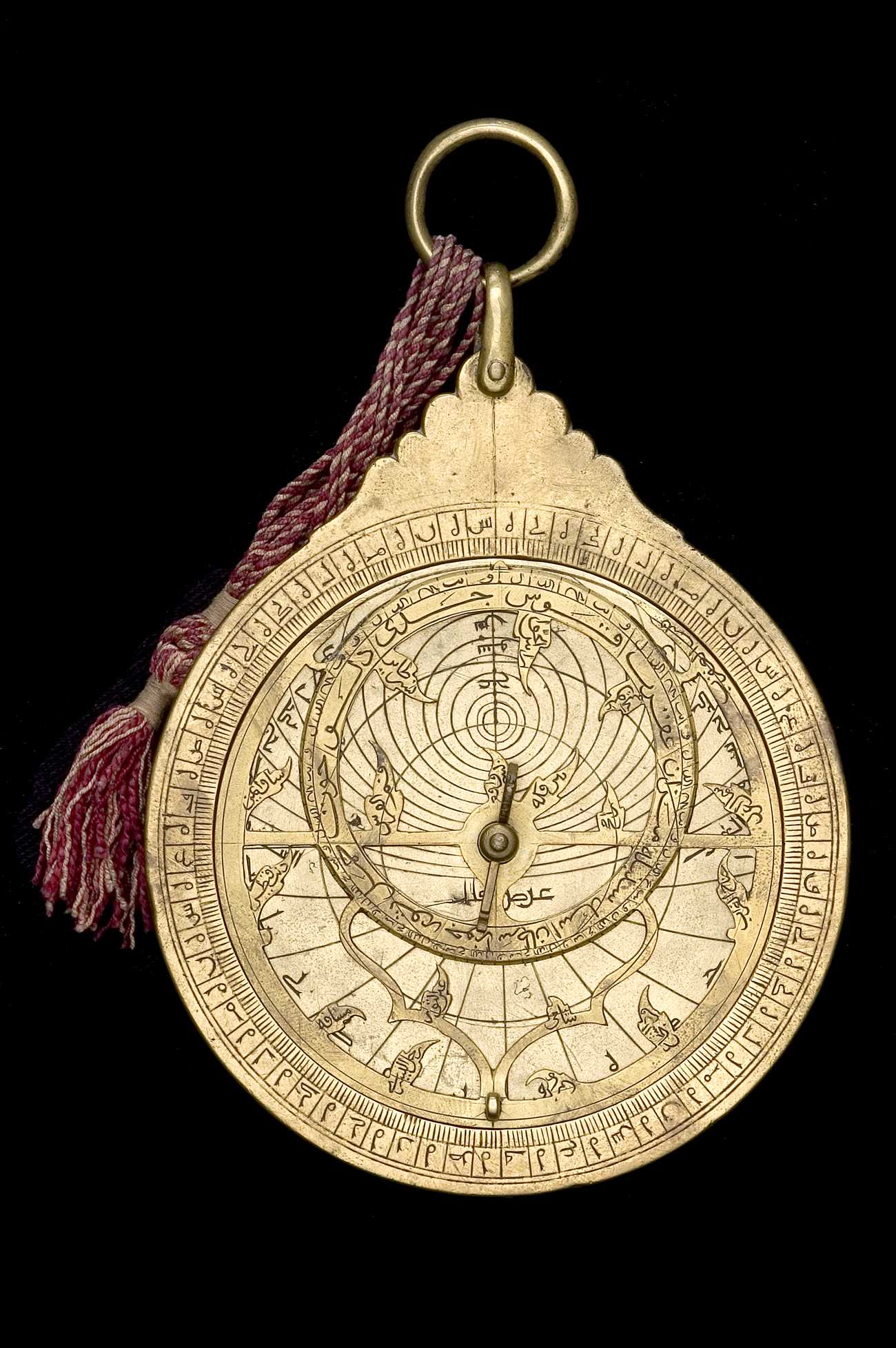

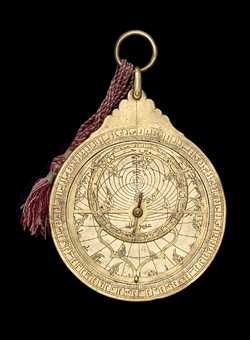

thumbnail for astrolabe (front), inventory number 53307 from Turkey, 17th century (?)

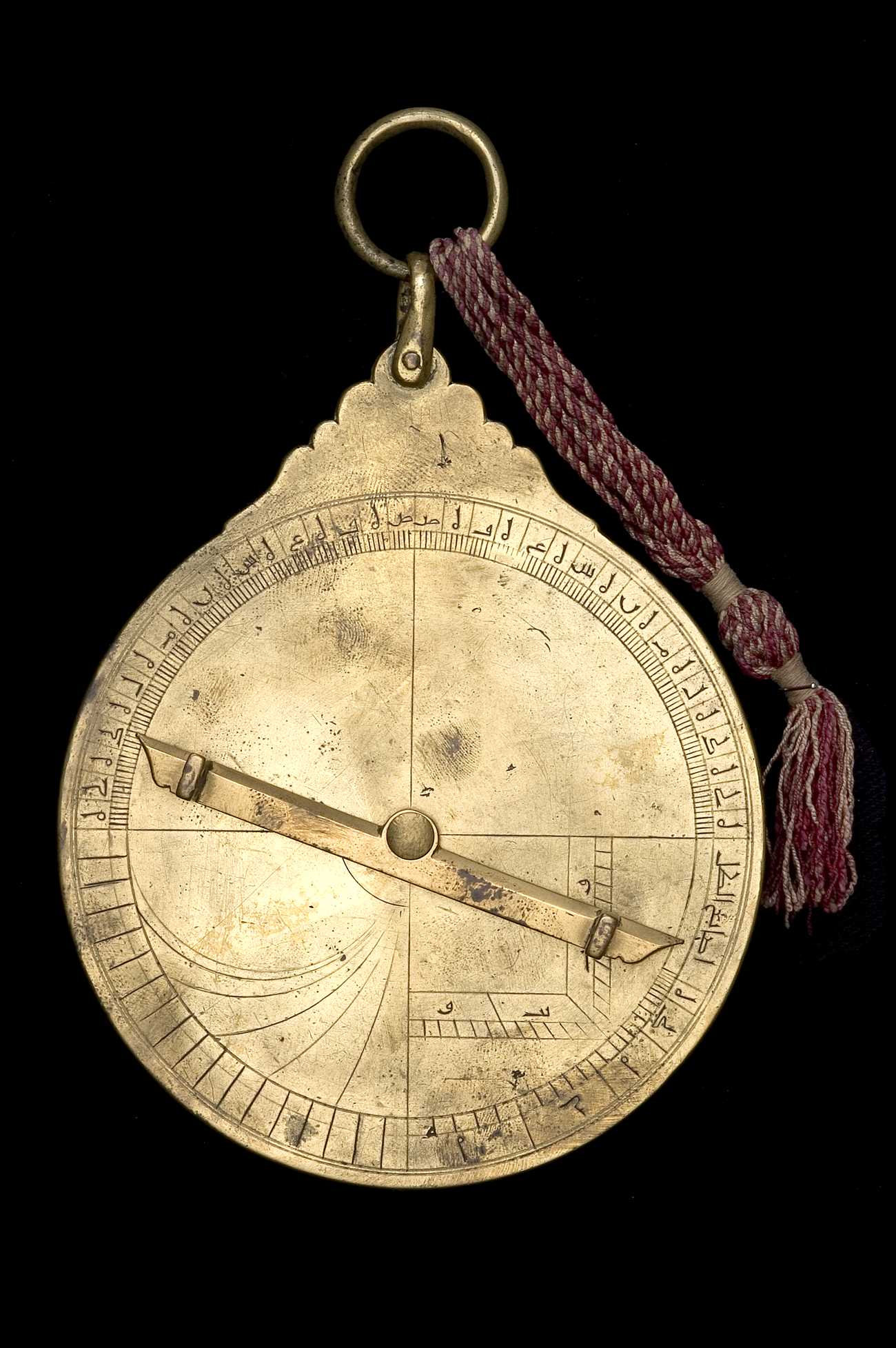

thumbnail for astrolabe (back), inventory number 53307 from Turkey, 17th century (?)

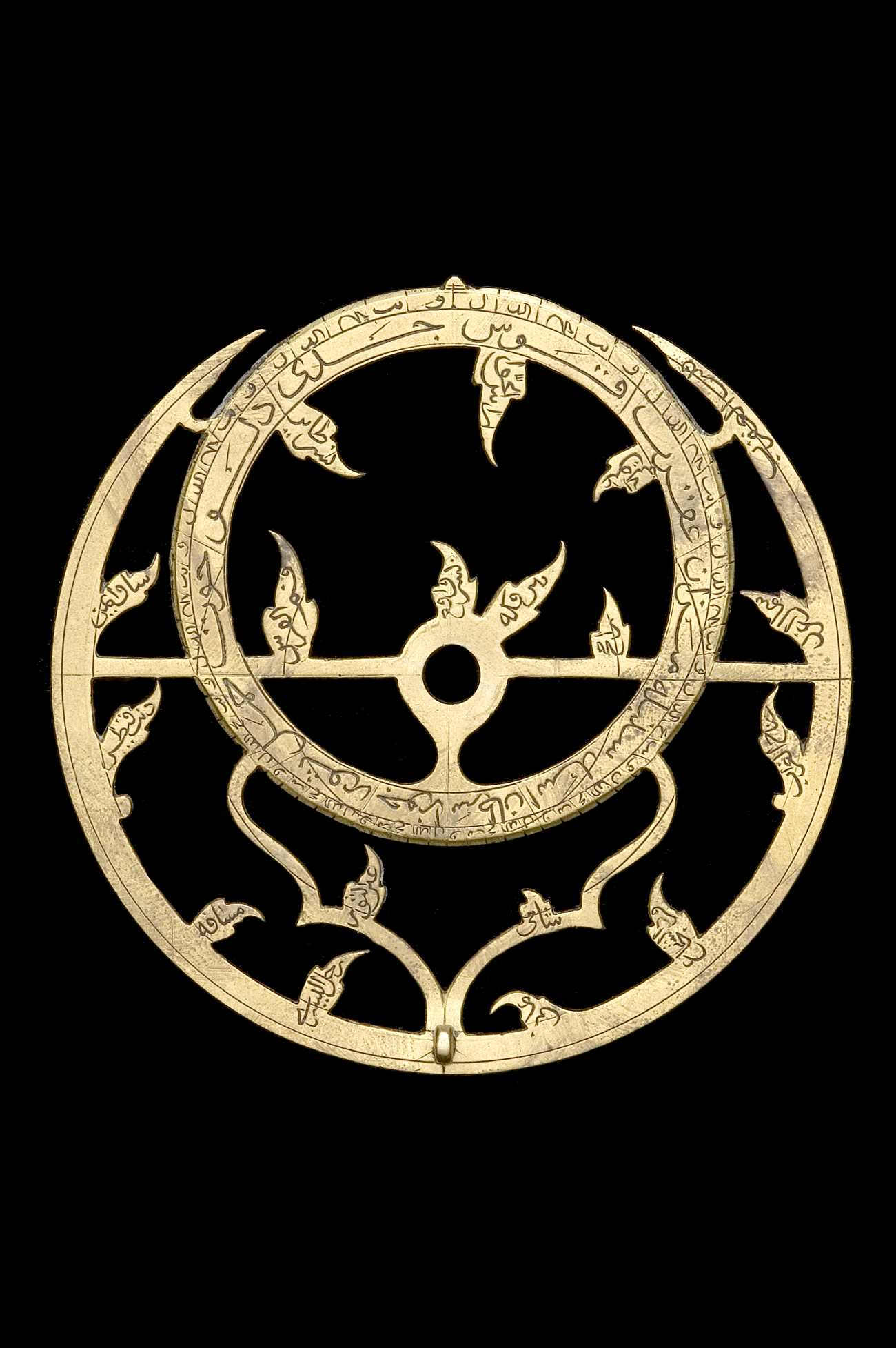

thumbnail for astrolabe (rete front), inventory number 53307 from Turkey, 17th century (?)
Date17th century (?)
PlaceTurkey
MaterialBrass
Inventory no.53307
AcquisitionPresented by J. A. Billmeir in 1957

View all images for this astrolabe
View detailed provenance for this astrolabe

Throne, Ring and Shackle

The throne is of the simple type made of brass attached with integrated base made of brass and has a simple, round cross-section ring made of brass and omega type shackle made of brass . More information

Mater

The mater and limb are of two pieces, soldered construction. Scales on the limb: degree scale. More information

Back

The back contains 4 scales of the following types: Altitude; Unequal hours; Cotangent; Shadow square. More information

Rete, Pin & Wedge

The rete contains 0 stars. The zodiac on the rete is labelled: حمل , ثور , جوزا , سرطان , اسد , سنبله , ميزان , عقرب , قوس , جدي , دلو , حوت .
The rete is attached using a pin & wedge. The horse is neatly carved.. More information

Plates

There are 3 plates with latitudes ranging from 21°0' to 45°0' . More information

Rules & Alidades

Type Details
AlidadeDouble-ended.
More information
