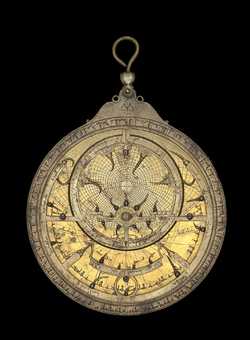

Throne, Ring and Shackle

The throne is of the simple, engraved type made of brass attached with integrated base made of brass and eye-bolt type shackle made of brass . More information

Mater

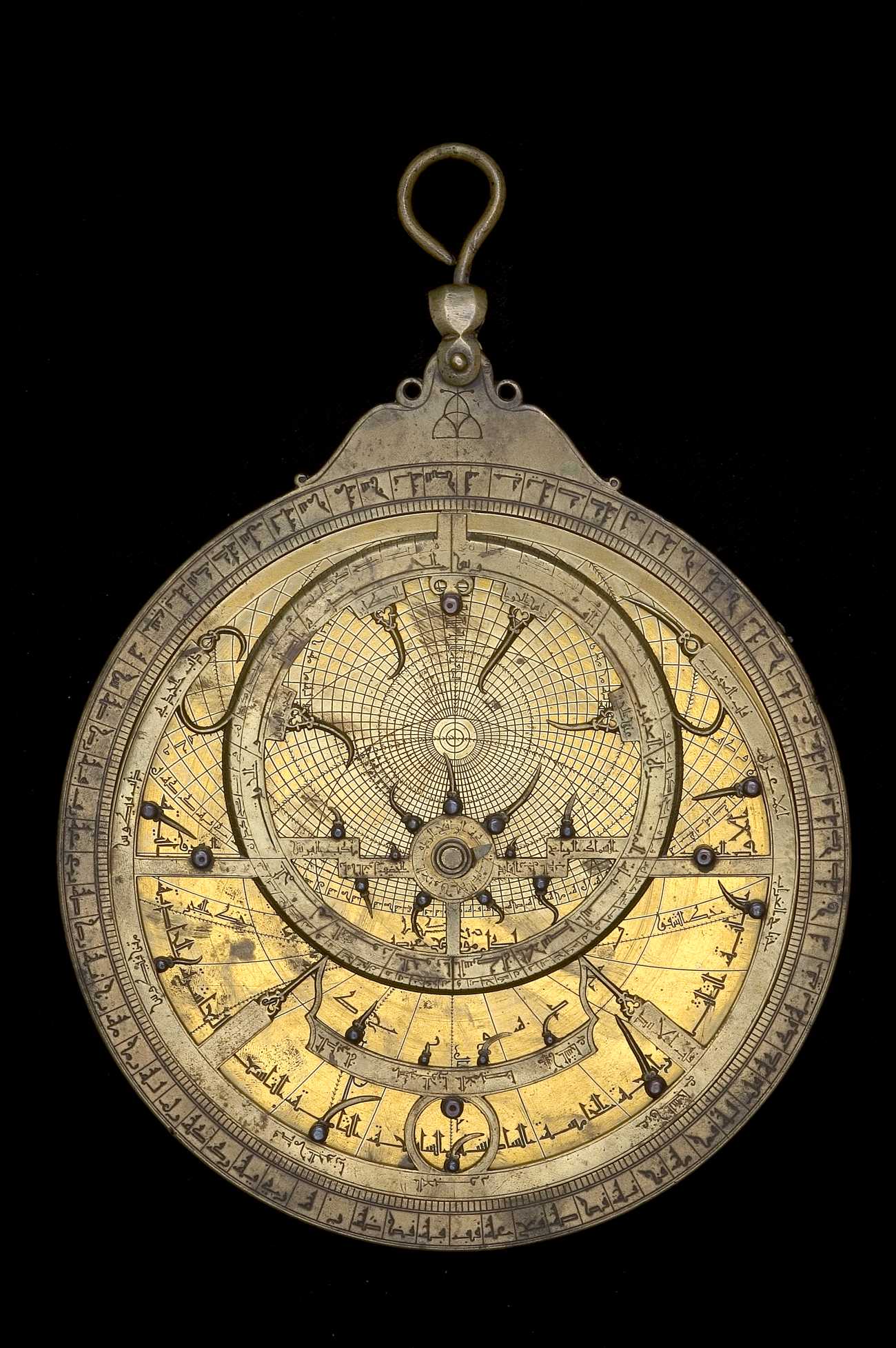

The mater and limb are of one-piece construction. Scales on the limb: degree scale. More information

Back

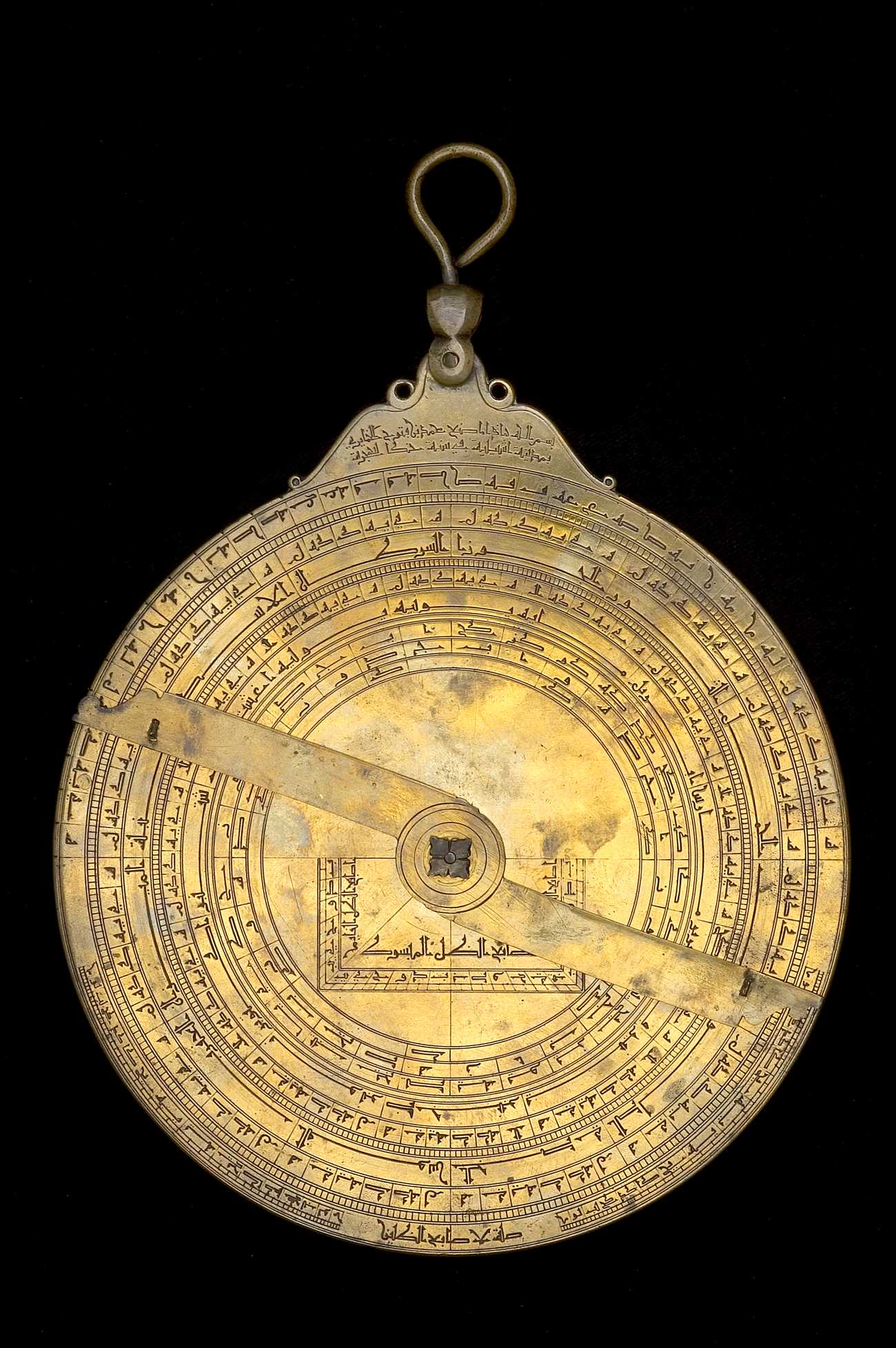

The back contains 7 scales of the following types: Altitude; Zodiacal signs; Calendar; Perpetual calendar; Shadow square; Cotangent. More information

Rete, Nut & Bolt

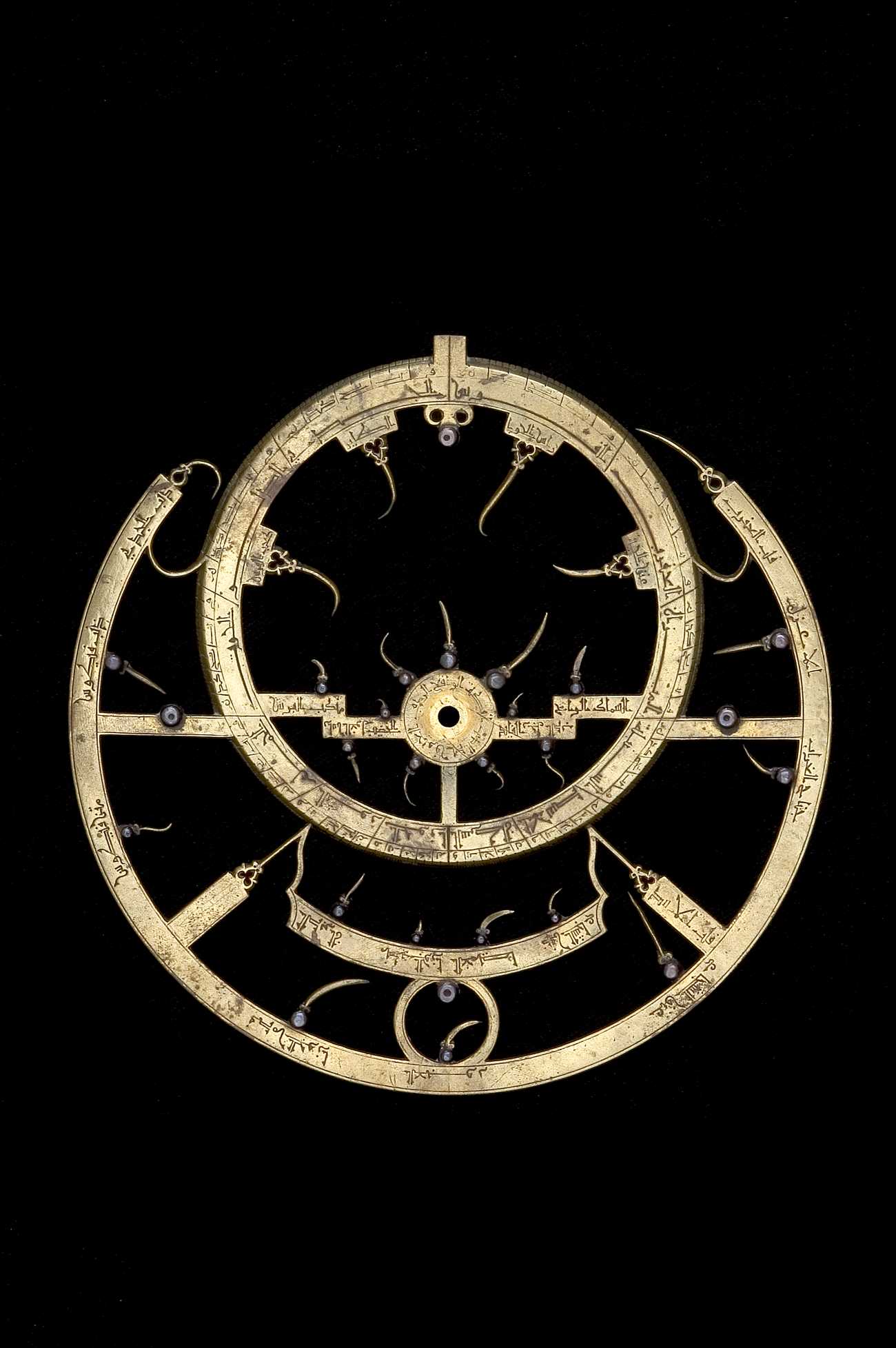

The rete contains 0 stars. The zodiac on the rete is labelled: الحمل , الثور , الجوزا , السرطان , الاسد , السنبلة , الميزان , العقرب , القوس , الجدي , الدلو , الحوت .
The rete is attached using a nut & bolt. A small, square nut thread on to an equally small bolt. The head of the bolt has a small pointer extending from it. The shank of the bolt is square and fit into the square hole on the alidade. This ensured that the pointer on the front of the instrument was always colinear with the alidade on the back.. More information

Plates

There are 5 plates with latitudes ranging from 31°0' to 40°0' . More information

Rules & Alidades

Type	Details
Alidade	Double-ended, counter-changed. The sights that were originally on this alidade have since broken off and are now missing..

More information
