Astrolabe Catalogue


astrolabe, inventory number 54545 from Persia (?), 20th century

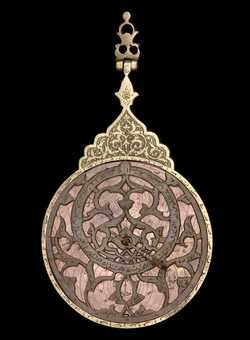

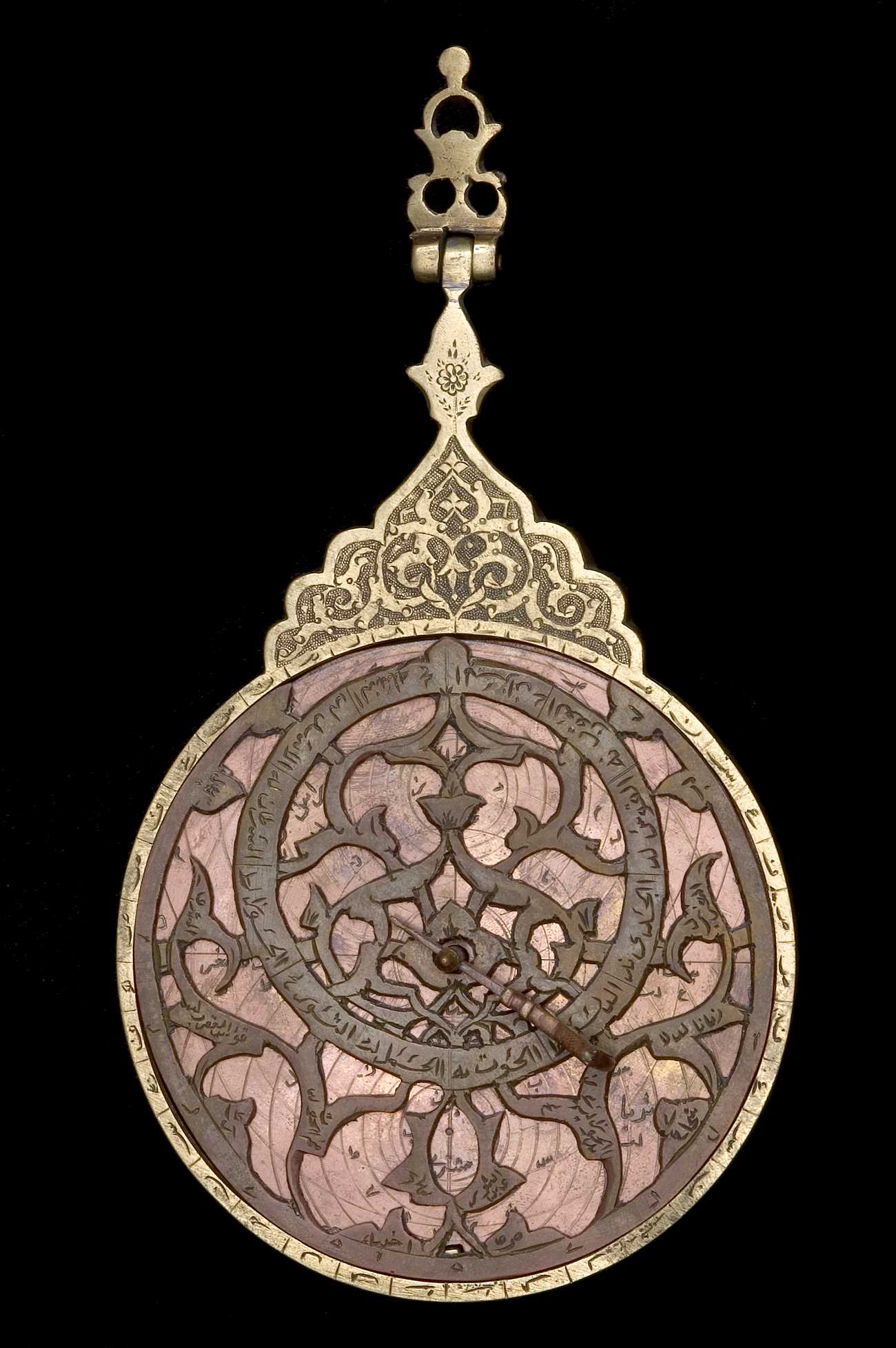

thumbnail for astrolabe (front), inventory number 54545 from Persia (?), 20th century

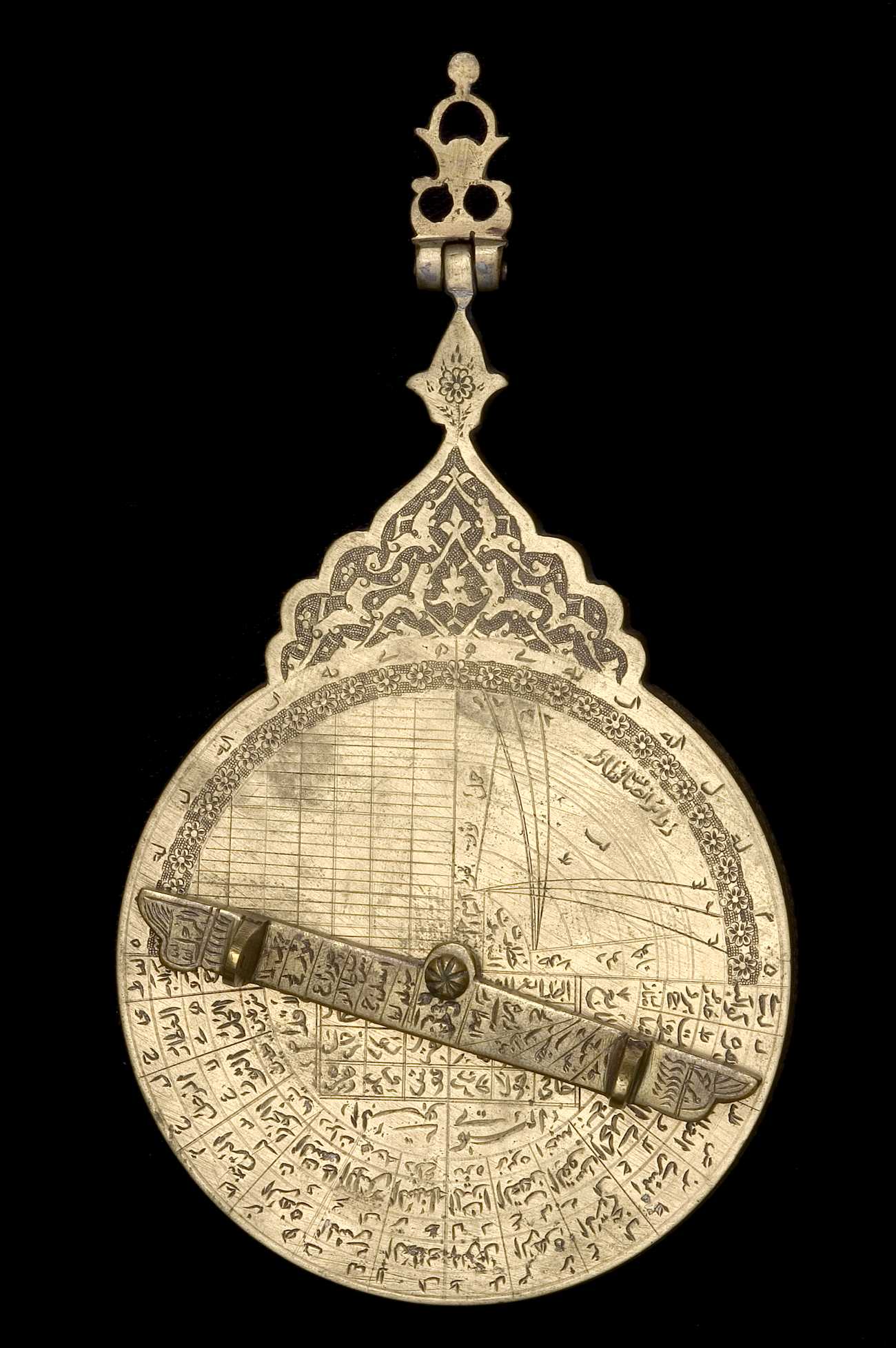

thumbnail for astrolabe (back), inventory number 54545 from Persia (?), 20th century

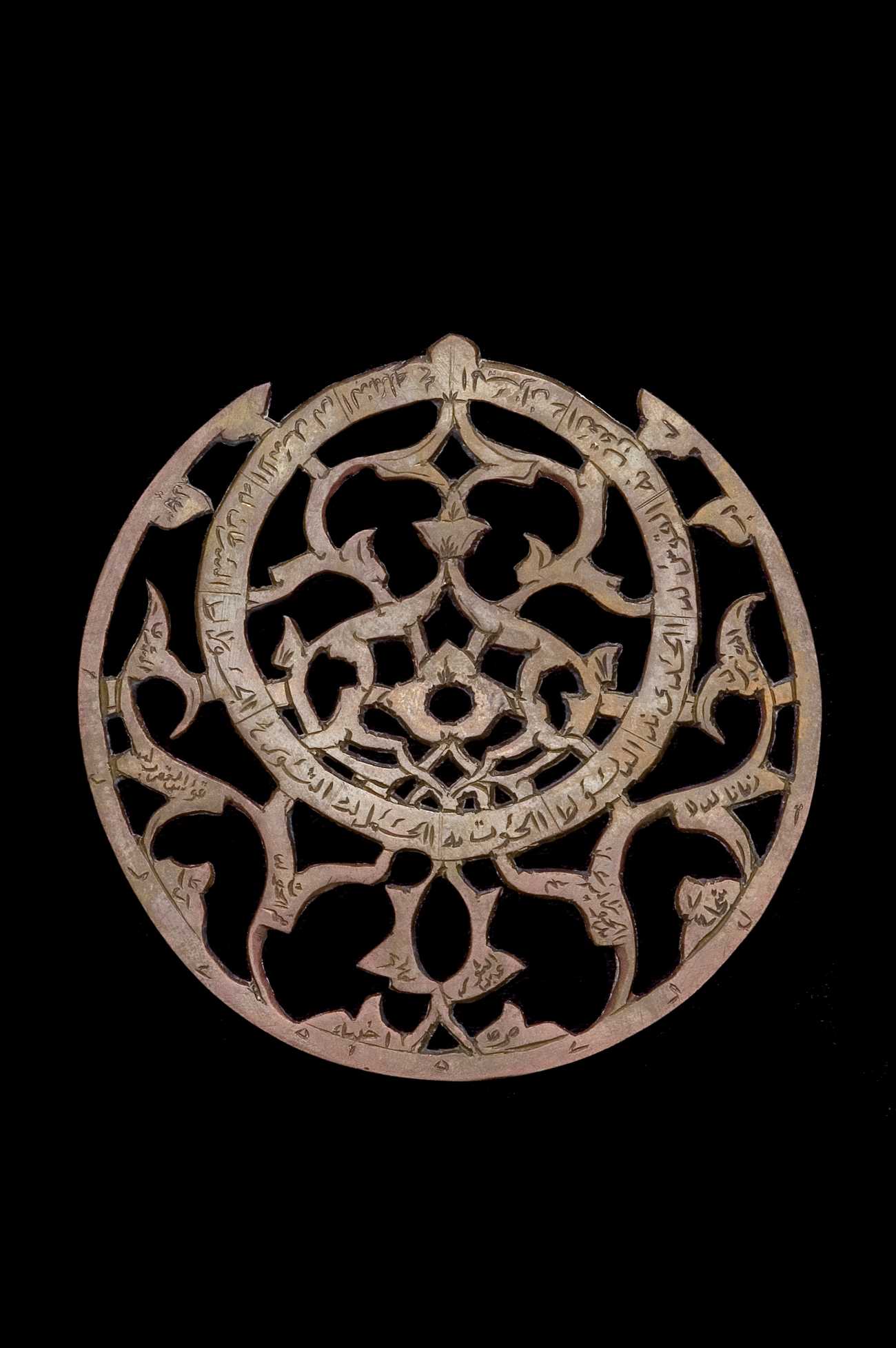

thumbnail for astrolabe (rete front), inventory number 54545 from Persia (?), 20th century
Date20th century
PlacePersia (?)
MaterialBrass
Inventory no.54545
AcquisitionPresented by J. A. Billmeir in 1957

View all images for this astrolabe
View detailed provenance for this astrolabe

Throne, Ring and Shackle

The throne is of the indo-persian type made of brass attached with integrated base made of brass and other type shackle made of brass . More information

Mater

The mater and limb are of one-piece construction. This limb is extremely narrow and was probably not meant to contain a scale.. Scales on the limb: degree scale. More information

Back

The back contains 7 scales of the following types: Altitude; Sine/Cosine; Declination; Azimuth of Qibla; Altitude of noon sun; Shadow square; Triplicities. More information

Rete, Pin & Wedge

The rete contains 0 stars.
The rete is attached using a pin & wedge. The head of the pin is decorated with radial lines. The horse is simple.. More information

Rules & Alidades

Type Details
AlidadeDouble-ended. This rule contains a number of scales, though they are rarely intelligible. .
More information
